- Application areas encompass machining cast iron, cast steel, carbon steel, alloy steel, stainless steel, hardened steel, copper and aluminium
- DIN: ZYA
- Type of cut: F = Fine, M = Medium, C = Coarse
- X-Cut: for hard and soft materials, produces short and blunt chips, runs smoothly even at low cutting speeds
- Diamond cut: for heat-treated and tough alloy steels and epoxy, excellent finish, minimal axial forces

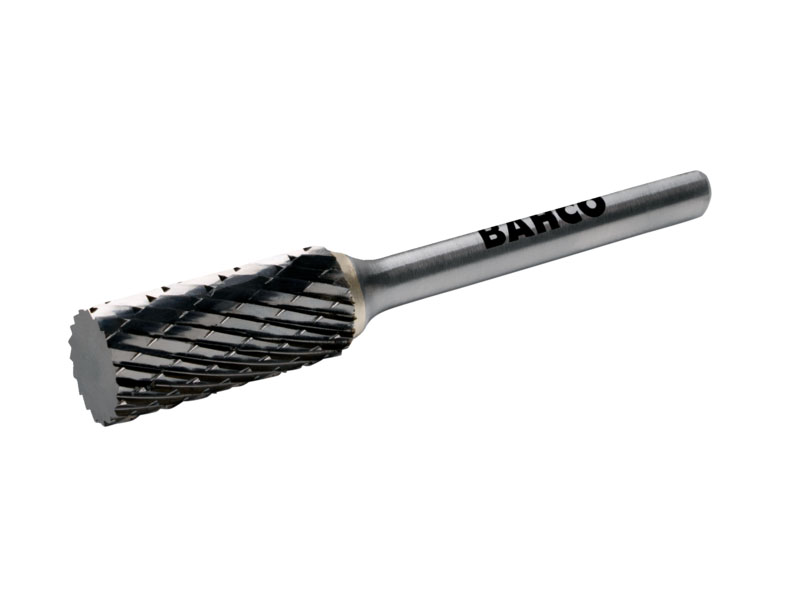

- End cut: cylindrical burrs (A) and inverted cone burrs (N) can be supplied with end cut
- Stock standard: X = yes
- Deburring of edges and plane surfaces
- Indispensable tool, used in large number of industrial sectors including aviation, shipping, automotive and the chemical industry etc.
- Used to deburr irregular objects or to complete finishing work inside a confined space
- Number of teeth is also indicated in addition to the type of cut for each rotary burr
Head diameter 16 mm
Head Length 25 mm
Shank diameter 6 mm
Total length 65 mm
Type of cut M*
Number of teeth 28
Weight, g 70 g
Diameter 16 mm
