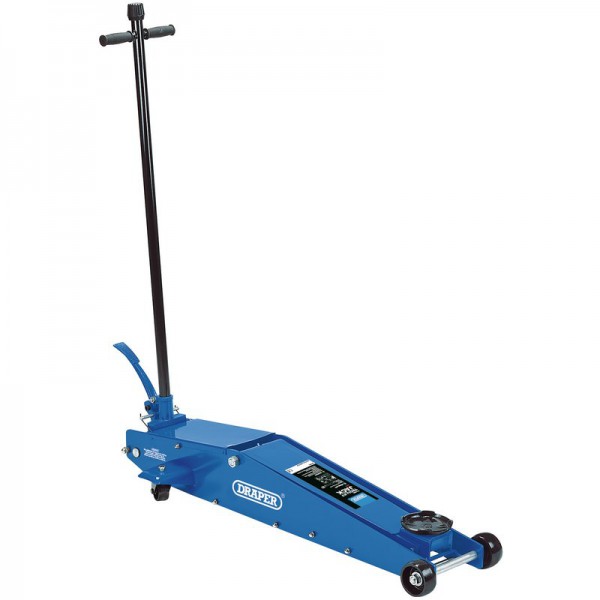

High-Lift, Heavy-duty chassis fitted with a ‘quick-lift’ foot pedal to rapidly raise the saddle to the vehicle jacking point. Large saddle aids positioning. T-shaped handle with an incorporated release valve prevents accidental lowering. Rear swiveling castors increases manoeuverability. Safety valve prevents the jack from overloading. Supplied with a one piece handle.
Capacity 2 Tonne (2,000kg)
Minimum height 140mm
Maximum height 800mm
Stroke 660mm
Saddle diameter 117mm
Handle length 1020mm
Chassis size 1355 x 385 x 270mm
Nett weight 58kg
Manufactured to EN1494 Specification
