A comprehensive wheel servicing kit. Consisting of a semi – automatic tyre changer and wheel balancer. The tyre changer is capable of removing and replacing tyres on wheels up to 23″. Powered by a fully motorised turntable and fitted with pneumatically operated clamping jaws and bead breaker enabling the changing of conventional tyres quickly and easily. The bead breaker is attached with a large anti – skid rubber pad, which preserves the tyres and rims. Each machine is attached with a self – centring four – jaw chuck guaranteeing that wheel rims are correctly clamped. Alloy rims are treated particularly gently as the mounting head is provided with plastic protectors. The semi-automatic wheel balancer is Supplied with a calibration weight and able to balance wheels up to 65kg and 24″ in diameter all with an accuracy of 1 gram. Suitable for passenger and LGV wheel/tyre combinations. Both machines are fitted with a standard 13 amp plugs and supplied with the following accessories: 4x centering cones, centering shaft, wheel weight pliers, hub nut and rim width calipers, tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors and inflation gun and air hose.
Wheel Balancer Specifications
Balance speed: 200RPM
Power supply: 230V
Balance accuracy: 1 Gram
Cycle Time: 8-10 seconds
Max tyre diameter: 43″
Max tyre width: 35″
Rim capacity: 10″ – 20″
Rim width capacity: 1.5″ – 20″
Max weight capacity: 65kg
Dimensions (guard open): 13208mm x 1016mm x 1651mm
Dimensions (guard closed): 13208mm x 965mm x 1270mm

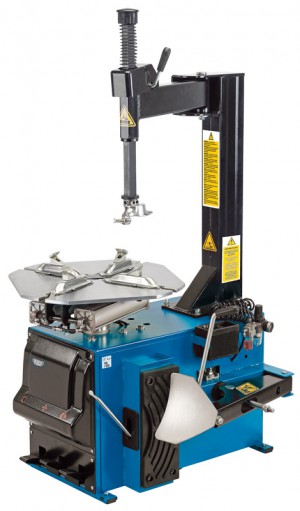

Tyre Changer Specifications
Moto: 0.75KW
Power supply: 230V
Bead breaker force: 2100kg
Pneumatic supply: 90-115psi (6-8BAR)
Suitable for use on wheel width: 3″ to 14″
For rim dia. (internal locking): 13″ to 23″
For rim dia. (external locking): 11″ to 21″
Max tyre outside diameter: 40″ (1000mm)
Dimensions: 1740mm x 950mm x 760mm
Weight: 180kg
