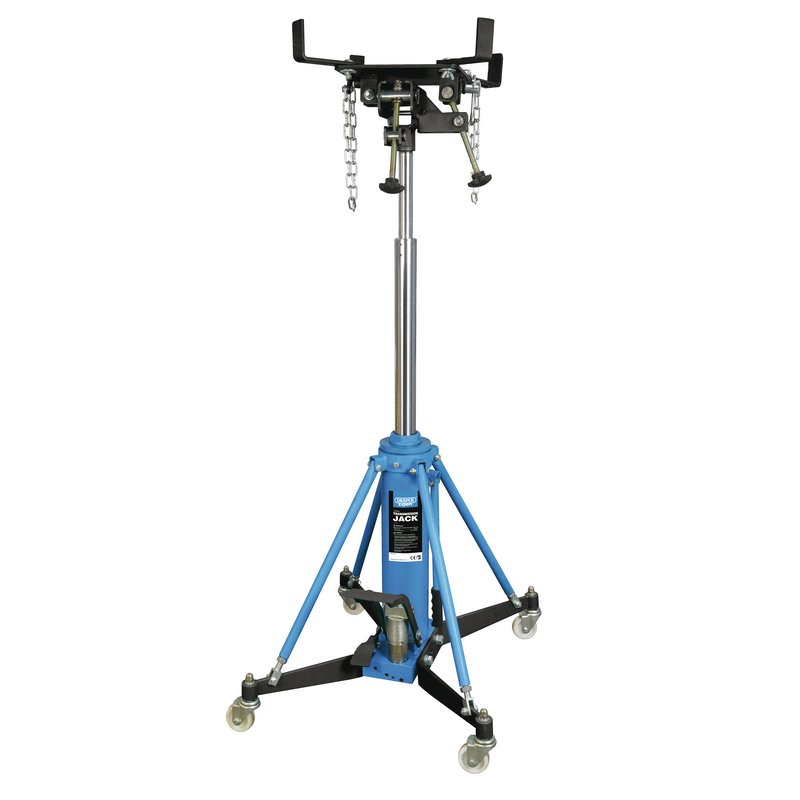

Expert Quality, hydraulic vertical transmission jack with a telescopic twin stage ram. Fitted with a lowering control system (LCS) which safely lowers the load precisely into positionand the safety overload valveprovides addeduser protection. Operated via the twin position andlsquo;Quick Lift’ foot pedal for hands – free operation and attached with chain straps for added support and adjustable supporting struts for increased stability. The nylon wheels provide a quieter and smoother operation whilst preventing damage to workshop floors and the side – mounted handle aids positioning and increases manoeuvrability. The fully adjustable saddle can accept a wide variety of gearboxes/components and the forward, backward and side – to – side tilt features aids the user further.
Capacity: 1,000kg
Minimum height: 940mm
Maximum height stage 1: 1,430mm
Maximum height stage 2: 1,940mm
Castor diameter: 75mm
Base size: 740 x 640mm
Saddle type: Adjustable
Chain length: 1,495mm
Weight: 67kg
Manufactured to EN1494 Specification
