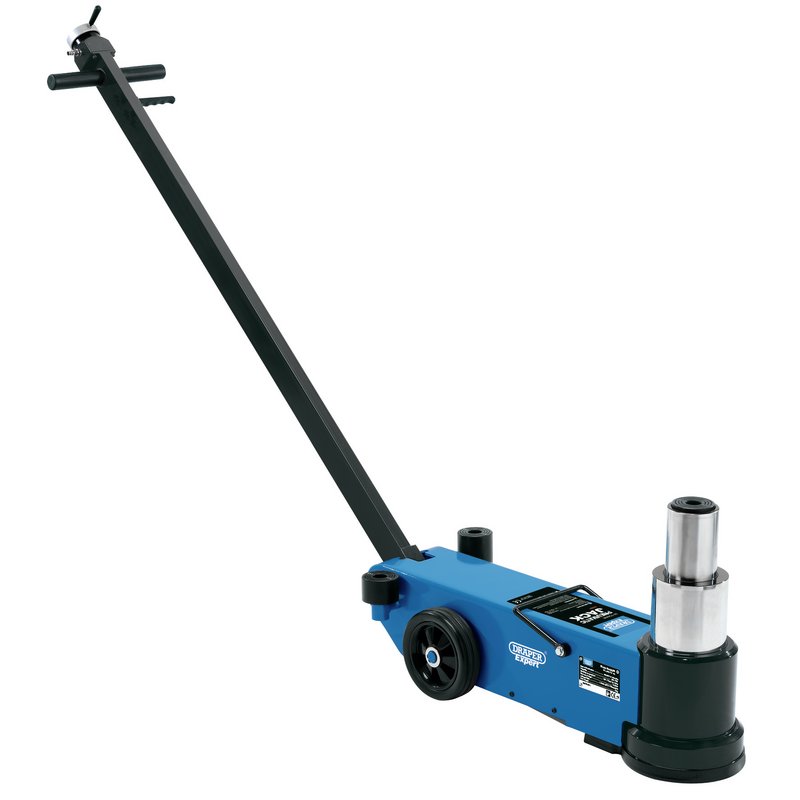

Expert Quality, portable and compact twin stage pneumatic jack, capable of lifting 50 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a “Slow Down” valve and a “Self-Return” switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4″ BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
Capacity stage 1 50 Tonne (50,000kg)
Capacity stage 2 25 Tonne (25,000kg)
Minimum height 215mm
Maximum height stage 1 450mm (inc extensions)
Maximum height stage 2 564mm (inc extensions)
Lift height stage 1 115mm
Lift height stage 2 114mm
Operating air pressure 9 – 12BAR (130 – 174psi)
Air consumption 11.5cfm
Air inlet 1/4″ BSP
Wheel diameter 165mm
Wheel width 42.5mm
Saddle diameter 70mm
Extensions 45mm and 75mm
Handle length 1380mm
Chassis size 805 x 200 x 215mm
Nett weight 73kg
Manufactured to EN1494 Specification
